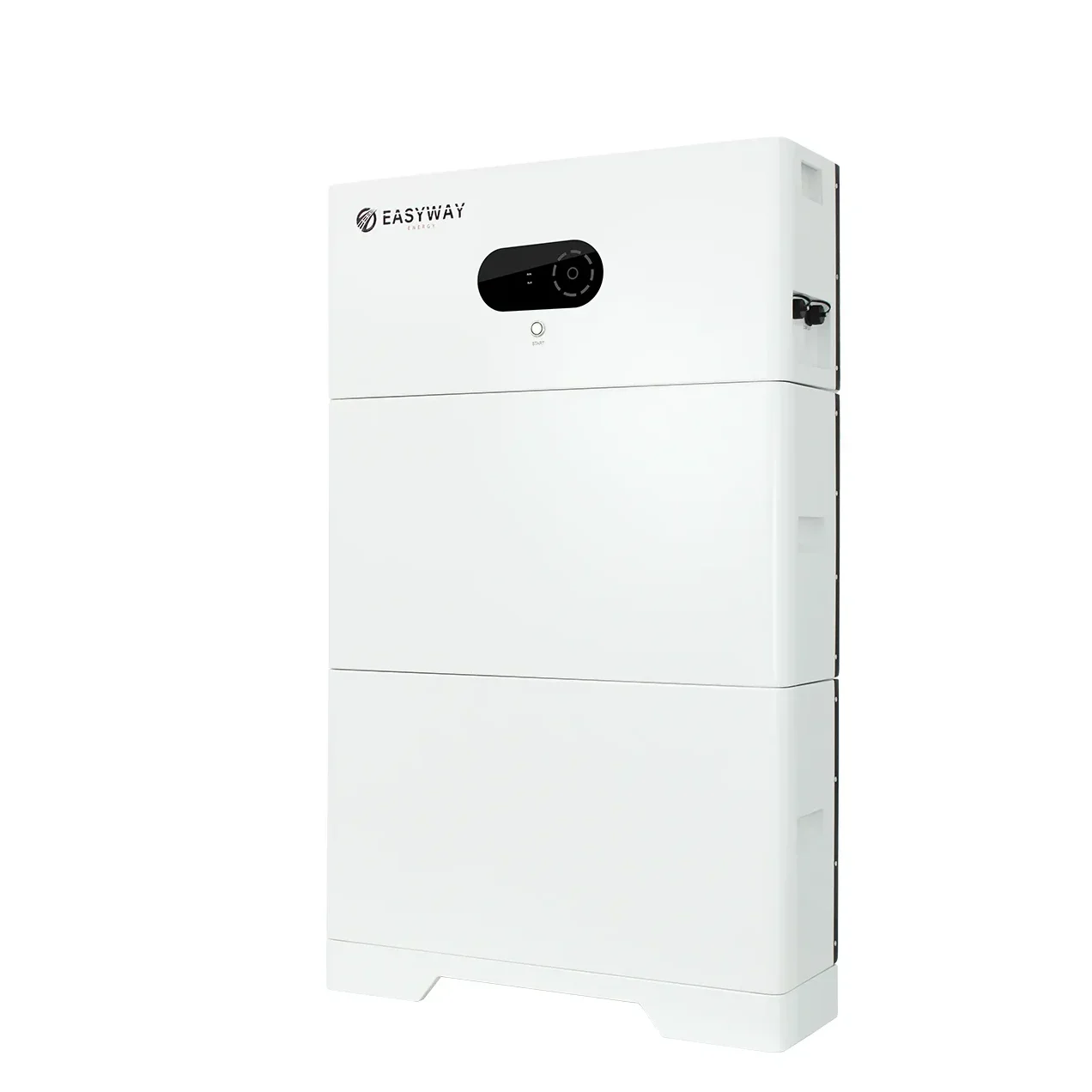

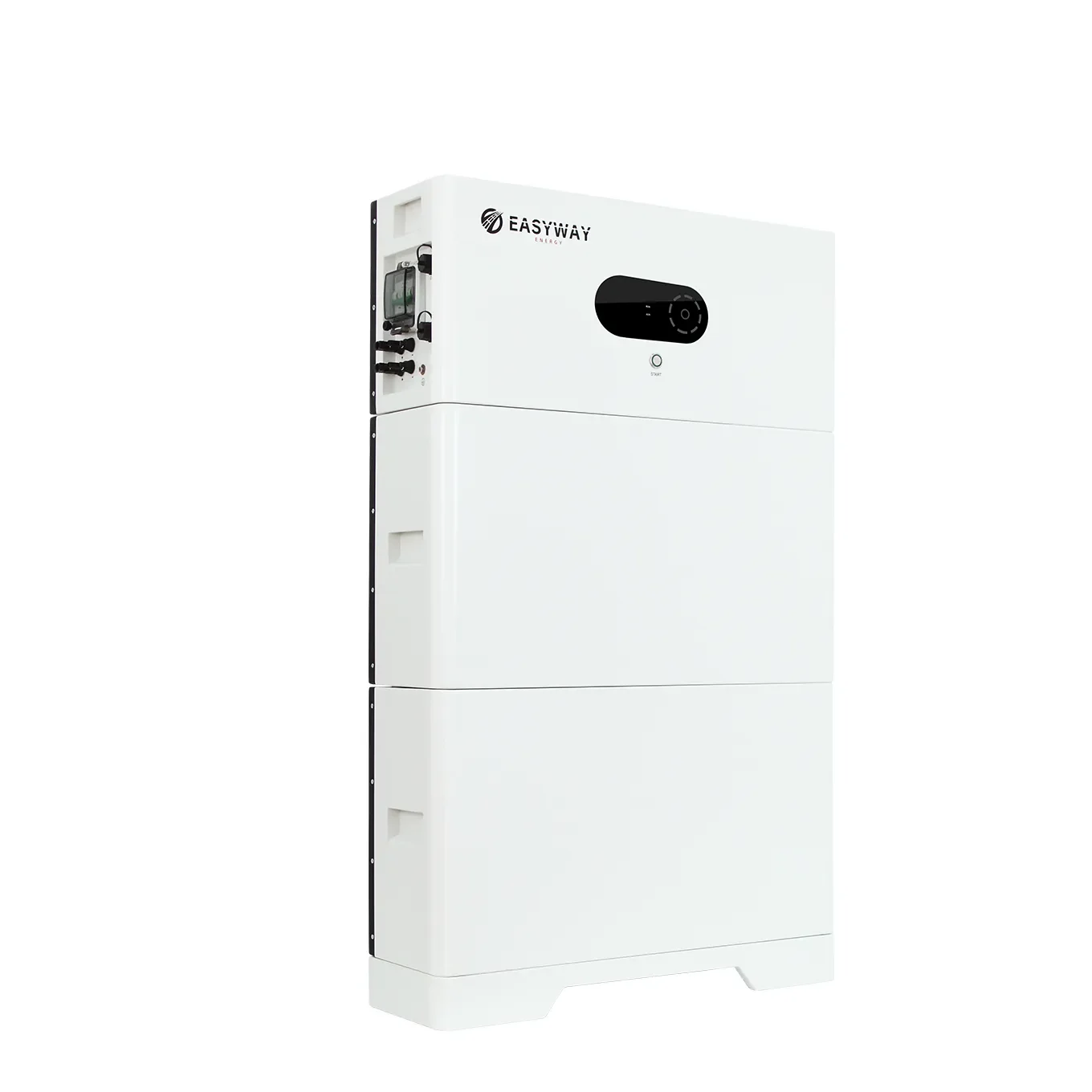

Empower your residential energy strategy with the UNIV-5kWh(HV) Stackable High-Voltage Battery. This agile 5.12kWh LiFePO4 module features a sophisticated modular stackable design, allowing for seamless expansion from 5.12kWh to 102.4kWh ( 5.12kWh/Module 20.48kWh/Stack , parallel up to 102.4kWh ) to perfectly match your growing power demands.
Built with advanced High-Voltage (HV) technology and DC-DC boost (51.2V→400V), it ensures maximum conversion efficiency and rapid response times. Encased in a robust IP65-rated enclosure, the UNIV-5kWh(HV) is engineered for peak performance in any environment, providing a safe, intelligent, and elegant all-weather energy reservoir for modern sustainable living.
| Model | HV |
|---|---|
| Installation Type | Stackable |
| Battery Energy*(kWh) | 5.12 |
| Battery Type | LiFePO4 |
| Weight (KG） | 54 |
| Dimension (W *H* D)(mm) | 680*374*210 |
| Maximum Parallel Modules | 15 |
| Cycle Life | >6000 cycles / 10 Years |
| IP Rating | IP65 |
Designed to reduce current loss and improve system efficiency in solar energy storage applications.
Advanced BMS protection supports voltage, temperature, current, and system-level safety management.
Modular battery structure simplifies transportation, installation, capacity expansion, and maintenance.
24/7 online technical support for pre-sales configuration, inverter matching, and after-sales service.
Built for installers, EPC teams, and distributors working on reliable high voltage energy storage systems.
For homes and villas requiring higher voltage battery systems, improved efficiency, and reliable backup power.
Designed for grid-tied and hybrid solar storage systems with compatible inverter platforms.
Suitable for offices, shops, villas, and small business sites with solar self-consumption needs.
Ideal for project-based delivery, scalable configuration, and repeatable installation workflows.
EASYWAY high voltage energy storage systems are designed for safe deployment, flexible integration, and reliable long-term operation across residential and commercial solar storage projects.
Designed to support EU and international energy storage project requirements, from safety compliance to transportation documentation.
Modular battery architecture supports scalable capacity configuration for different solar storage applications.
Get inverter matching guidance, project recommendations, and technical feedback within one business day.
Designed for hybrid inverter systems, EASYWAY high voltage battery solutions help installers and EPC teams build scalable, inverter-compatible, and reliable solar storage projects.
Check Compatibility →Share your inverter brand, system voltage, and required capacity. Our team will help confirm compatibility and recommend a suitable battery configuration for your project.
Technical response within 24 hours.
Answers for installers and EPC teams working with stackable high-voltage battery systems.
Yes. EASYWAY high-voltage battery systems include intelligent BMS protection for voltage, current, temperature, short circuit, and cell balancing.
Our systems include BMS protection, pressure relief valves, and optional built-in aerosol fire suppression. IP65 waterproof versions are available for outdoor installation.
Yes. For stackable high-voltage series such as UNIV7600HP, you can stack up to 8 modules with a base and HV control box to reach up to 61kWh or more per cluster.
Our batteries are officially listed compatible with Sungrow, Solis, Solinteg, and SolaX. They also support many major inverter brands through CAN or RS485 communication.
Yes. We provide product manuals, integration guides, online training sessions for partners, and CAN analyzer tools for remote diagnostics when needed.
Yes. When paired with a compatible hybrid inverter that supports backup mode, the system can switch to battery power to support critical loads during blackouts.
